Overview

The outdoor gateway offers functions similar to the indoor gateway, with industrial-grade components and a high IP rating, meeting high reliability standards. It provides a reliable out-of-the-box experience, critical for rapid deployment.

Specifications

Model	GWO04
Wi-Fi	Frequency: 2.4GHz (802.11b/g/n) RX sensitivity: -95dBm (min) TX power: 20dBm (max) Channels: 2.4GHz: 1-13
LoRa®	Card: SX1302 mPCIe card Channels: 8 channels (fixed) RX sensitivity: -139dBm (min) TX power: 25dBm (max) LTE FDD: B1/B3/B7/B8/B20/B28A
Working Voltage	DC 9~28V
Power Consumption	1.1W (ETH, 12V)
Standby Power	0.72W (12V)
Ethernet (ETH)	RJ45 (10/100M)
Console	RJ45 (RS232)
Antenna	5 N-Type connectors
Ingress Protection (IP Rating)	IP67
Housing Material	Aluminum
Weight	1060g
Dimensions	210 mm x 130 mm x 60 mm
Storage Temperature	-45 °C ~ +90 °C
Operating Temperature	-35 °C ~ +70 °C
Installation	Pole or wall mounting

Key Features

For outdoor deployment, a single station covers about 1 km in open areas, with up to 100 terminals for 8-channel and 200 for 16-channel stations; capacity can be enlarged for low-motion devices. Expand capacity by running multiple stations in parallel on different frequencies (to 16 or 32 channels); RCT positioning terminals (badges, Bluetooth gateways) can dynamically adjust their working frequency.

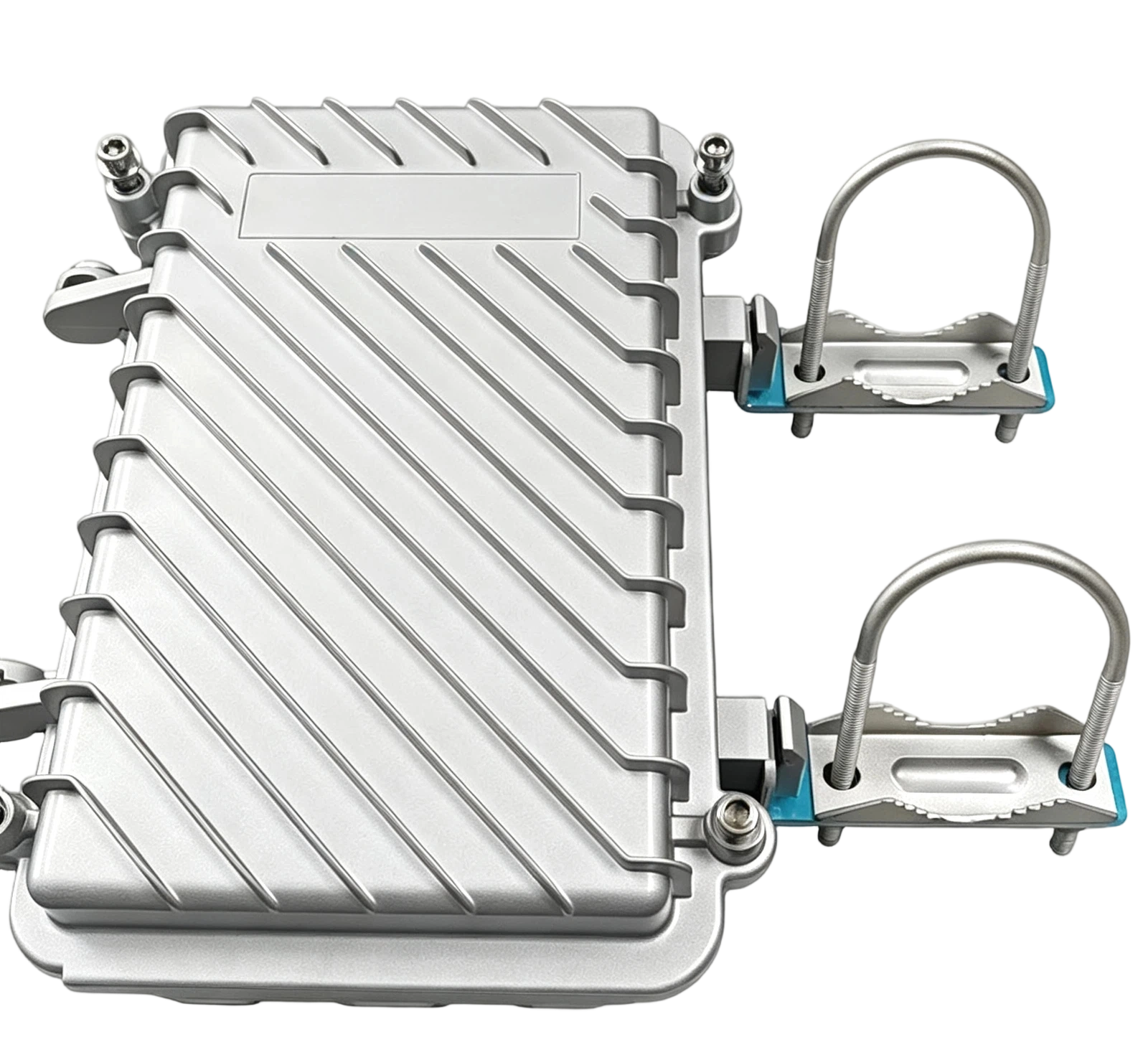

GWO04
